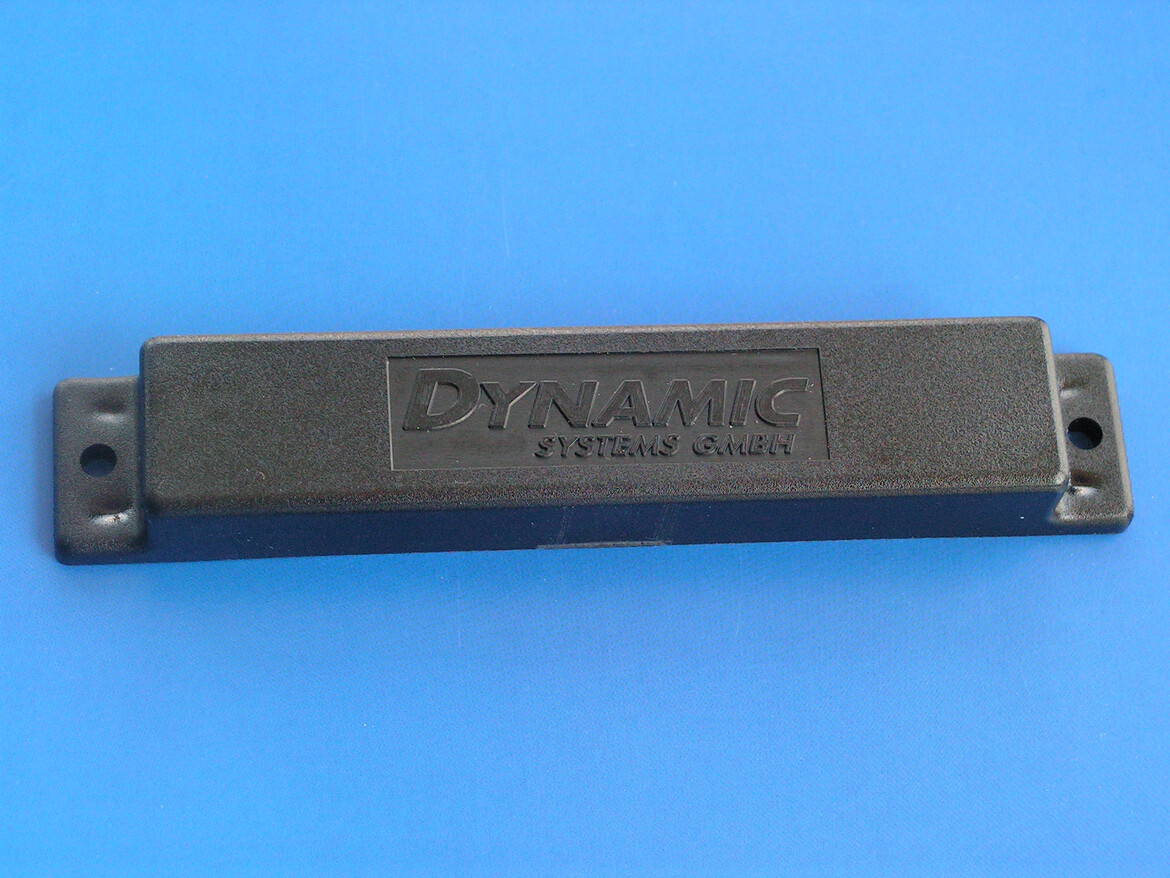

DYN-HF-HT126
Industrial transponder HF-Hard Tag 126
Rough, maintenance-free and cost-effecient industrial transponder with the operating frequency 13,56 MHz ISO 15693
Electrical power supply: passive via HF-reader, no battery
Frequency: HF, 13,56 MHz, ISO 15693
Chip Type: Philips I-Code SLI (128 byte);
Optional: Infineon my-d SRF 55V10P (1024 byte); further chip types on demand
Physical specifications: length: 126 mm, width: 22 mm, height: 15 mm
Fixing holes: D=4 mm, distance: 116 mm
Material: standard polyamide
colour: black or customized
Operating distance: approx. 25 cm; on metal: max. 10 cm
Saefty class system: IP67, Water immersion
Thermal: up to 150°C, 1h (optional: up to 220°C)
