DYN-HF-HT30D

Laundries, hotels, medical institutions, textile- and costume-rentals have a huge challenge in handling the cleaning of sheet laundry or clothes. The daily loop from the distribution to the usage back to the return and cleaning must be perfectly organised, controlled and operated. Thereby as less clothes as possible should be damaged or lost.

Small– plain – intelligent – sturdy

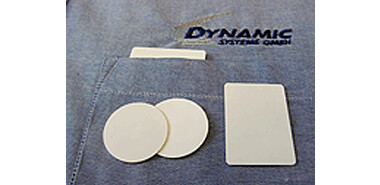

The laundry tag is specialised for the requirements of textile- and laundry logistc. With its absolute plain construction of 0,75 mm it does preserves clothes during mangling and pressing processes. Additionally it does not influence the wearing- and using comfort and does not stand out optically. Dued to its flexibility and sturdiness it is nearly undestructable in the hardest operation.

Applicable for the hard daily-business
Its high-quality and reliability is approved by the independent research institute Hohenstein. By a defined amount of cycles (washing, drying in the finisher) a reading-quality of nearly 100 percent has been reached. This result is unique for this type.

Characteristcs
Measures

Product measures (B x L)	DYN-HF-HT-42x30: 42 mm x 30 mm DYN-HF-HAT-30D: D = 30 mm
Thickness	0,75 mm (0,69 bis 0,85)
Electric parameters
Working frequency	13,56 MHz
Technology	Tag-it-HF-I Plus
Unique serial number (UID)	64 bit
Memory	2 kbit
Thermal characteristcs
Storage temperature	20°C ± 5°C
Operating temperatur (Inlay)	-25°C bis +70°C
Application area	-20 °C bis +95°C
Thermo Patching / Mangleprocess	+180°C bis +220°C / 10 – 15 Sekunden
Finisher	+175°C
